SCC750A
Description

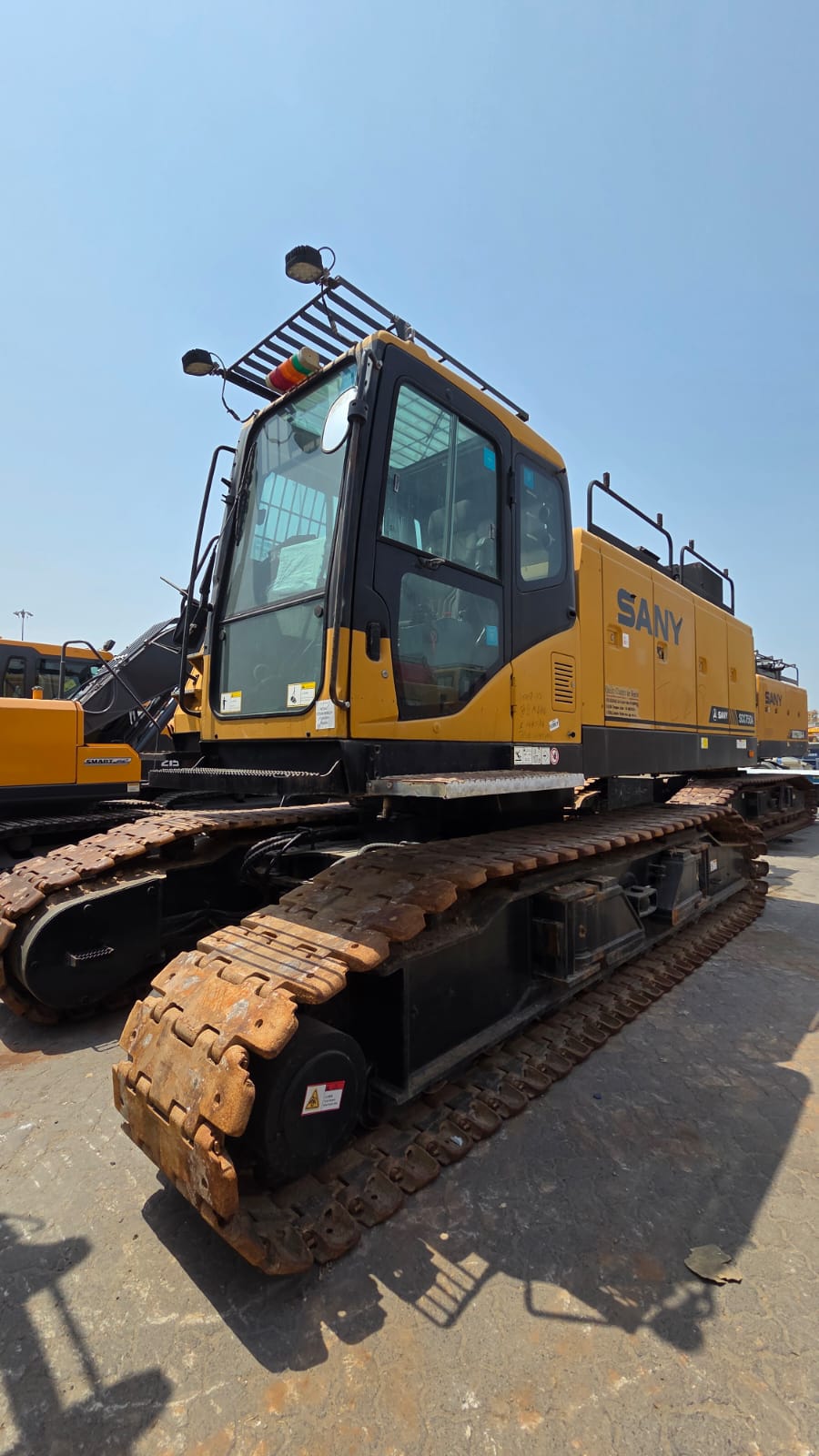

The SANY SCC750A is a reliable and versatile 75-ton crawler crane designed to deliver strong lifting performance with stability and efficiency on demanding job sites. Built for medium to heavy-duty applications, it combines solid load capacity with excellent maneuverability, making it ideal for construction projects, industrial installations, infrastructure works and precast operations.
Rental Includes:
- • Equipment inspection reports
- • Mob/Demob service
- • 24/7 technical support
- • Comprehensive insurance coverage
- • Certified operator
Key features
- Maximum lifting capacity: 75 tons
- Strong structural stability on uneven terrain
- Advanced hydraulic system for smooth and precise lifting
- Efficient assembly and disassembly
- Reliable performance in confined or challenging site conditions
With crawler tracks for superior ground stability and load distribution, the SCC750A is well suited to projects requiring safe, controlled lifting. At Mahoor Heavy Equipment, our cranes are regularly inspected and maintained for high performance, operational safety and maximum reliability on site.
- 75 tMax capacity @ 3.7 m
- 288–300 t·mMax load moment
- 57 mMax main boom
- 45 + 18 mLongest boom + fixed jib
- 24 tRear counterweight
Working ranges
Boom, jib & power options
Pick a section to see how the SCC750A is set up.
| Main boom | Value | Note |
|---|---|---|
| Boom length | 12 – 57 m | 39–187 ft lattice boom |
| Luffing angle | 30° – 80° / 81° | Depends on series |
| Max capacity | 75 t @ 3.7 m | |
| Max load moment | 288 – 300 t·m | Depends on series |
| Operating conditions | up to 11 | Boom and jib combinations |
| Fixed jib | Value | Note |
|---|---|---|
| Jib length | 9 – 18 m | 30–59 ft |
| Max jib capacity | 7.5 t | |
| Longest boom + jib | 45 m + 18 m | 63 m combined length |
| Engine option | Power | Fitted on |
|---|---|---|
| Isuzu 6HK1 | 212 kW @ 2,000 rpm | Standard series |
| Weichai WP7 | 199 kW @ 2,300 rpm | Later series, e.g. SCC750A-6 |
Technical data
SCC750A specifications
Winches & speeds
- Main / aux. winch rope speed0 – 135 m/min
- Rated single line pull7.5 t
- Main hoist ropeØ22 mm × 240 m
- Aux. hoist ropeØ22 mm × 150 m
- Boom hoist rope speed0 – 80 m/min (to 96 on newer series)
- Swing speed0 – 2.5 rpm
- Travel speed0 – 1.7 km/h (1.1 on some variants)
Power & control
- EngineIsuzu 6HK1 or Weichai WP7
- Rated power212 kW / 199 kW
- Fuel tank400 L
- Hydraulic oil tank460 L
- Control systemSYIC-2 / SYMC, CAN bus
Weight & counterweight
- Weight with basic boomapprox. 66.6 – 66.9 t
- Rear counterweight24 t
- Max capacity75 t @ 3.7 m
Smart control
Precise, monitored lifting
SYIC-2 / SYMC control
Sany's in-house integrated control links engine, winches and safety systems over CAN bus
Engine monitoring
Live engine data and diagnostics on the cab display
Safety automation
Load moment limiting and automatic cut-off of unsafe movements
Fast winches
Main and auxiliary hoists up to 135 m/min with 7.5 t single line pull
