SCC550A
Description

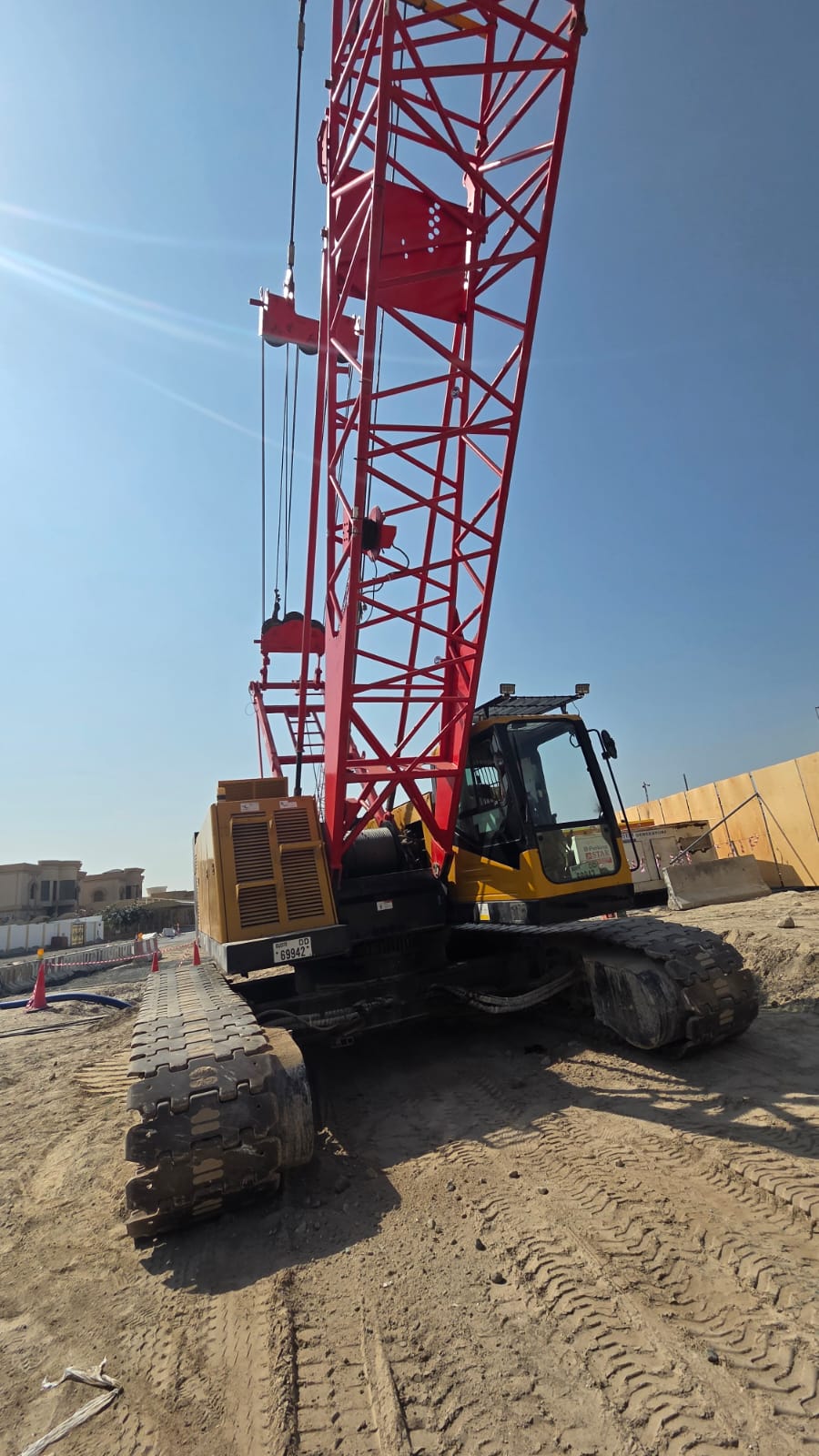

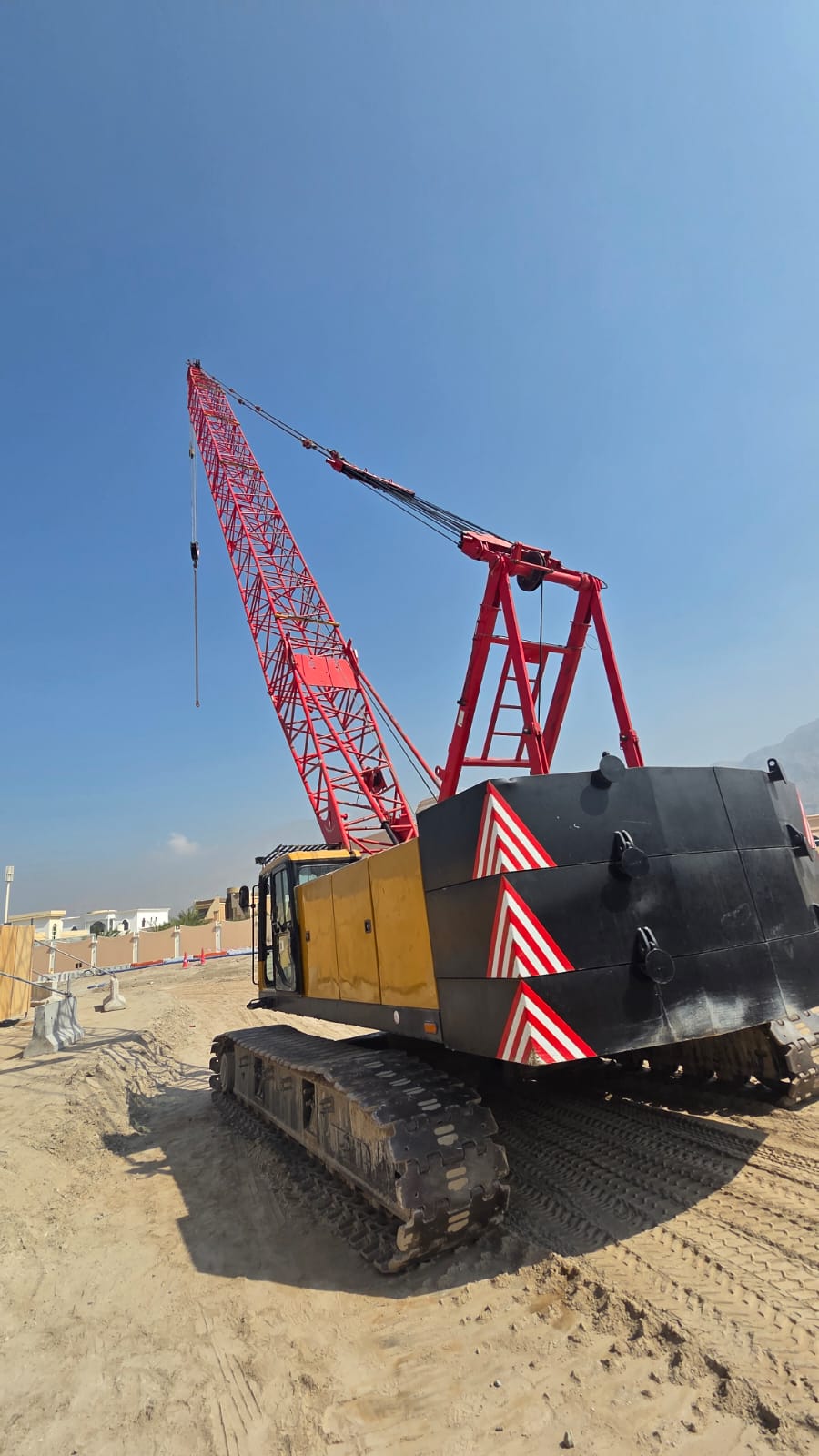

The SANY SCC550A is a dependable 50–55 ton class crawler crane designed to deliver stable, precise and efficient lifting across a wide range of construction and industrial projects. Built with a robust lattice boom and a crawler track base for superior ground stability, it is well suited to infrastructure works, steel erection, equipment installation and general heavy lifting.
Rental Includes:
- • Equipment inspection reports
- • Mob/Demob service
- • 24/7 technical support
- • Comprehensive insurance coverage
- • Certified operator
Key features
- Lattice boom configuration for strength and reduced wind resistance
- Optional fixed jib attachment for extended reach
- Modular counterweight system for enhanced stability
- Smooth and responsive hydraulic control system
- Efficient assembly and transport configuration
The crawler track system ensures balanced load distribution and reliable performance on uneven or challenging ground. Lifting capacity varies with boom length, working radius, counterweight configuration and reeving. Official load charts are available on request.
- 55 tMax capacity (60 t hook block)
- 52 mMax main boom
- 43 + 15.25 mLongest boom + fixed jib
- 130 m/minMain & aux. hoist speed
- ~16 tModular rear counterweight
Working ranges
Boom, jib & counterweight
Pick a section to see how the SCC550A is built up for your lift.
| Main boom | Value | Note |
|---|---|---|
| Boom length | 13 – 52 m | 43–171 ft |
| Basic boom | 6.5 m + 6.5 m | 6.5 m boom base + 6.5 m boom top |
| Boom inserts | 3 m × 1, 6 m × 3, 9 m × 2 | Pin-connected lattice sections |
| Pendant cables | — | Quick-hitch connectors optional |
| Max rated capacity | 55 t | 60 t hook block, 5 sheaves |
| Fixed jib | Value | Note |
|---|---|---|
| Jib length | 6.1 – 15.25 m | 20–50 ft |
| Basic jib | 3.05 m + 3.05 m | Jib base + jib top |
| Jib inserts | 3.05 m × 3 | |
| Longest boom + jib | 43 m + 15.25 m | 58.25 m combined length |
| Extension jib | 1.0 m | Welded, pinned to boom tip for the auxiliary hook |
| Rear counterweight part | Qty | Weight |
|---|---|---|
| Counterweight tray | 1 | 6.59 t |
| Left counterweight block (1) | 1 | 2.35 t |
| Right counterweight block (1) | 1 | 2.27 t |
| Left counterweight block (2) | 1 | 2.43 t |
| Right counterweight block (2) | 1 | 2.43 t |
| Total rear counterweight | approx. 16 t |
| Hook block | Sheaves | Use |
|---|---|---|
| 60 t hook block | 5 | Heaviest main hoist lifts |
| 45 t hook block | 3 | Mid-range lifts |
| 15 t hook | 1 | Light lifts |
| 9 t ball hook | — | Fast single-line work on the jib or auxiliary hook |
Technical data
SCC550A specifications
Winches & swing
- Main hoist rope speed0 – 130 m/min
- Main hoist ropeØ22 mm × 180 m
- Aux. hoist rope speed0 – 130 m/min
- Aux. hoist ropeØ22 mm × 130 m
- Rated single line pull7 t (main & aux.)
- Hoist drum diameter520 mm
- Boom hoist rope speed0 – 80 m/min
- Boom hoist ropeØ16 mm × 142 m
- Swing speedmax 1.9 rpm, 360°
- Free fall, main / aux.Optional
Engine
- ModelDCEC (Cummins China) QSB5.9-C210
- Type6-cyl in-line, turbo, intercooled
- Displacement5.9 L
- Rated power154 kW @ 2,200 rpm
- Operating power147 kW @ 1,800 rpm
- Max. torque820 N·m @ 1,500 rpm
- EmissionsEU & China Off-way Tier III
- Fuel tank400 L
- Electrics24 V, 2 × 12 V 180 Ah
Hydraulics & undercarriage
- Max system pressure32 MPa
- Hoists & travel32 MPa
- Swing / control20 MPa / 5 MPa
- Hydraulic tank460 L
- Control systemSany SYIC-II, CAN bus
- Track pads760 mm wide, 59 × 2
- CrawlersHydraulic extend / retract
- Travel driveIndependent per side
Operator cab
- 8.4-inch integrated touch screen showing engine data, wind speed, lifting conditions and boom angle
- Multiple cameras for backing, each winch's rope and the area behind the counterweight
- A/C and heater, multi-way floating seat with armrest controls and emergency stop
- Low and high-beam lights, rear-view mirrors and radio
Assembly & transport
- Crawlers extend for work and retract hydraulically for transport
- Assembly mode for rigging; Work mode activates every safety limiter
- Counterweight tray and blocks stack for easier assembly and transport
- Pin-connected boom and jib sections; quick-hitch pendant connectors optional
- Mobilization and assembly handled by our crew
Safety devices
Protected at every step
Load moment indicator (LMI)
Shows rated and actual load, radius and boom angle; cuts dangerous moves and records lift history
Tri-colour load indicator
Green under 90%, yellow 90–100% with alarm, red at 100% with automatic cut-off
Over-hoist protection
Limit switch at the boom tip stops the hook before it reaches the top
Over-release protection
Stops the winch when only three wraps of rope remain on the drum
Boom limit & back-stop
Two-stage upper boom limit and a spring back-stop against backward tipping
Boom hoist drum lock
Pawl locks the boom luffing drum when the handle returns to neutral
Function lock & seat interlock
All handles lock when the lever is up or the operator leaves the seat
Swing lock & swing light
Mechanical lock for transport; indicator light flashes while swinging or travelling
Anemometer & aviation light
Boom-tip wind speed shown in cab, plus a height warning light on the boom or jib
Electronic level gauge
Shows the crane's tilt in real time and alarms when out of limit
Emergency stop
Cuts power to the whole machine and stops every action
Engine protection
Power-limit load adjustment against stalling, plus live engine status monitoring
Remote monitoring
GPS location, machine status, operating data and remote fault diagnosis
Hook latch
Baffle plate on the hook stops the rope from falling off
Boom angle indicator
Pendulum indicator on the boom base, visible from the cab
Alarm & work lights
Start-up alarm light and adjustable lighting for night operation
