Sany SCC550E
Login to view detailed pricing and rental terms
Description

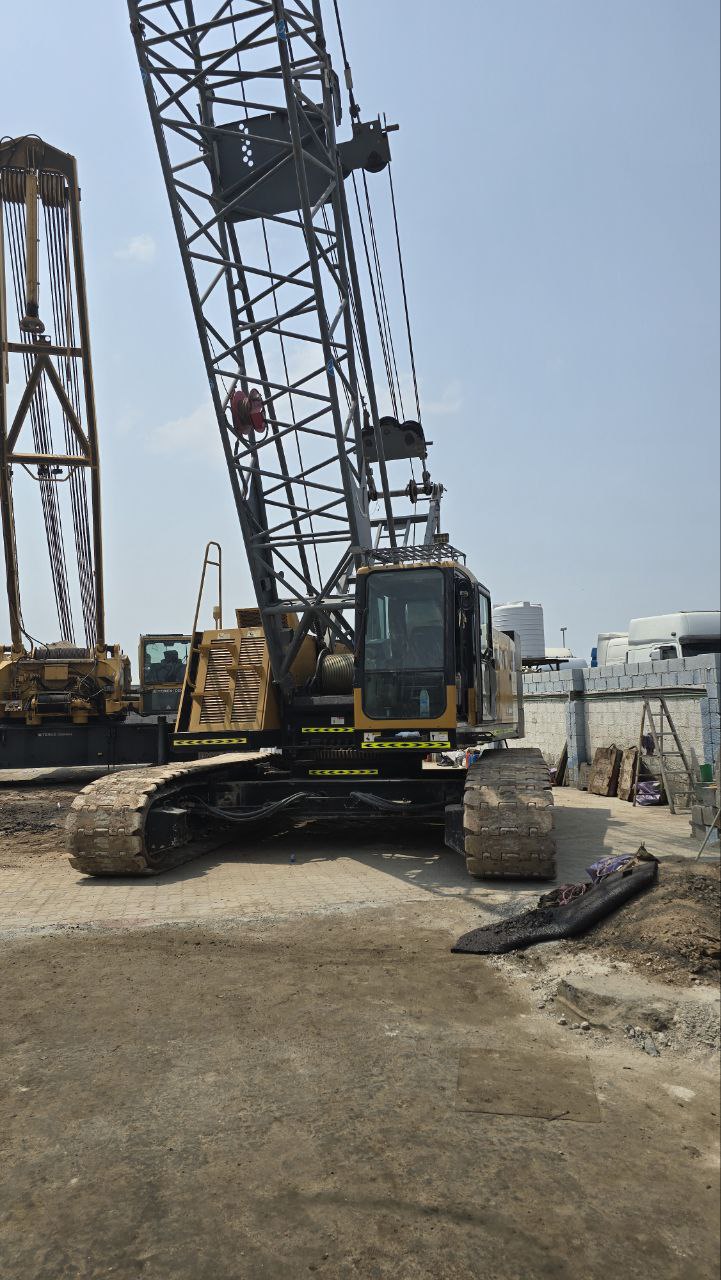

The SANY SCC550E is a 55-ton hydraulic lattice boom crawler crane designed for construction and heavy-duty industrial lifting. A load-sensitive hydraulic system, CAN bus electrics and an integrated load moment indicator give smooth, precise control, while the crawler base delivers a low ground pressure of 0.62 kg/cm².
Rental Includes:
- • Equipment inspection reports
- • Mob/Demob service
- • 24/7 technical support
- • Comprehensive insurance coverage
- • Certified operator
Ideal for
- General construction and building works
- Material handling on site
- Mid-tonnage crawler lifting where mobile cranes lack ground support
Lifting capacity varies with boom length, working radius, counterweight and reeving. Official load charts are available on request.
- 55 tMax capacity @ 3.7 m
- 52 mMax main boom
- 15.25 mMax fixed jib
- 0.62 kg/cm²Ground pressure
- 28.5 tTransport weight, no counterweight
Working ranges
Boom, jib & transport
Pick a section to see how the SCC550E is set up and moved.
| Main boom | Value | Note |
|---|---|---|
| Boom length | 13 – 52 m | 43–171 ft lattice boom; our unit: 41 m |
| Max capacity | 55 t @ 3.7 m | |
| Operation modes | Work / Assembly | Safety limiters active in work mode |
| Fixed jib | Value | Note |
|---|---|---|
| Fixed jib length | 6.1 – 15.25 m | 20–50 ft |
| Transport | Value | Note |
|---|---|---|
| Max transport weight | approx. 28.5 t | Without counterweight |
| Transport dimensions, L × W × H | 7.03 × 3.36 × 3.30 m | Transport width approx. 3.36 m |
| Travel speed on site | 1.2 km/h |
Technical data
SCC550E specifications
Lifting & reach
- Rated lifting capacity55 t @ 3.7 m
- Main boom13 – 52 m
- Fixed jib6.1 – 15.25 m
- Boom on our unit41 m
Power & travel
- EngineDongfeng Cummins, 6-cyl diesel
- Displacementapprox. 5.9 L
- Output132 – 154 kW @ 2,200 rpm
- Travel speed1.2 km/h
- Ground pressure0.62 kg/cm² (approx. 61 kPa)
Transport & control
- Transport weight (no counterweight)approx. 28.5 t
- Transport L × W × H7,030 × 3,360 × 3,304 mm
- HydraulicsLoad-sensitive system
- ElectricsCAN bus with integrated LMI
Control & safety
Safe, precise lifting
Calibration-free load moment limiter
Integrated LMI monitors load and radius and stops unsafe movements
Work and assembly modes
Assembly mode for rigging; work mode activates every safety limiter
Electronic level gauge
Shows the crane's tilt and warns when it is out of limit
Emergency electrical control
Backup control to operate or stow the crane if the main system fails
Slewing area limit
Optional limit on the slewing range for work near structures or traffic

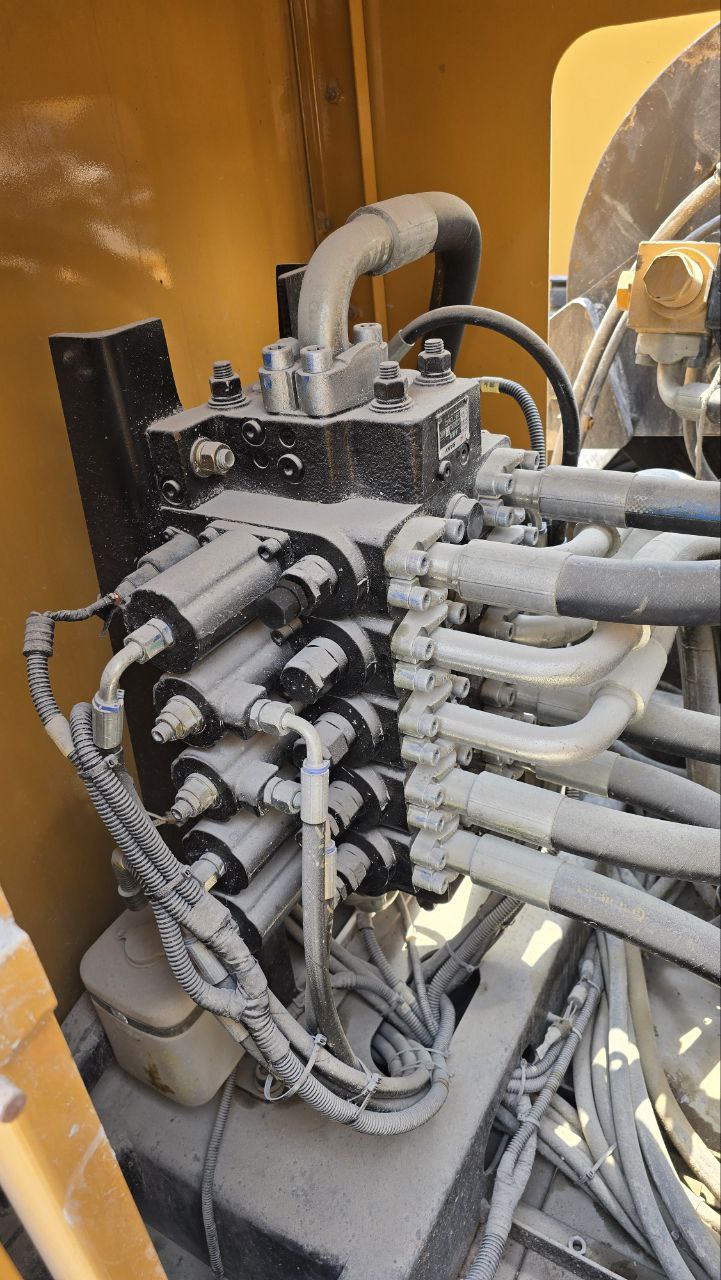

Load-sensitive hydraulics
Smooth, proportional control with fine inching
