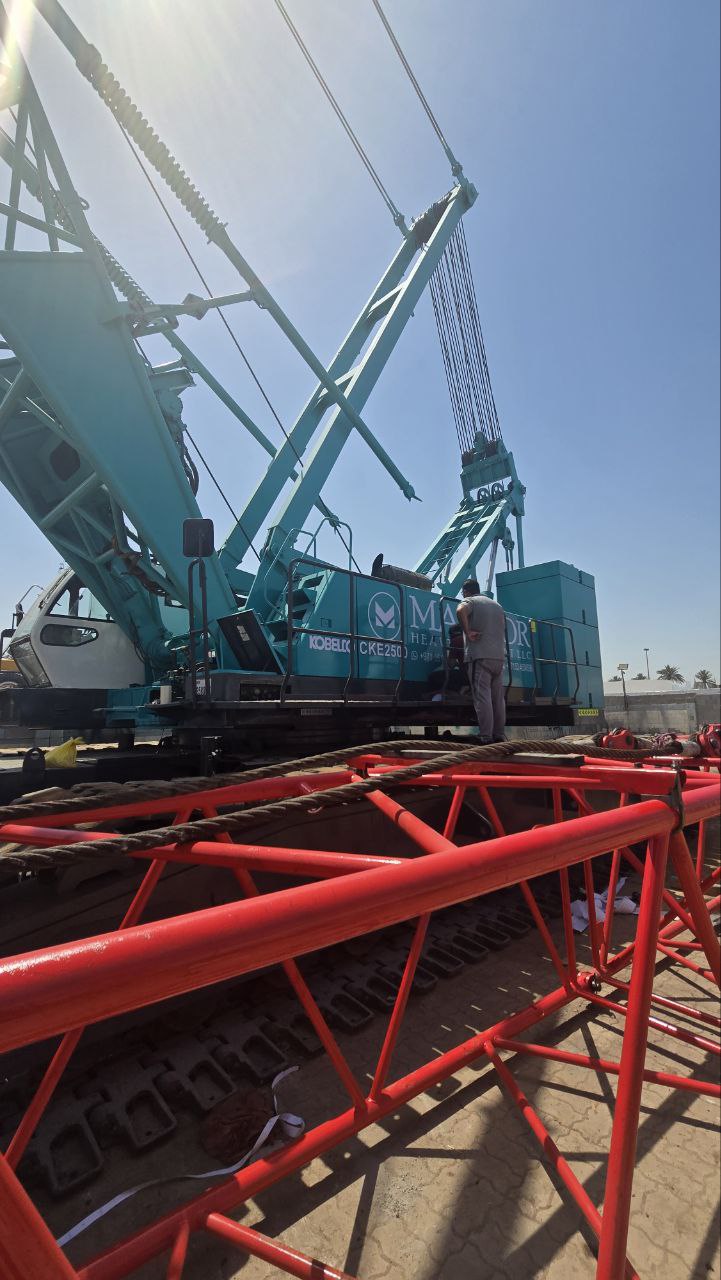

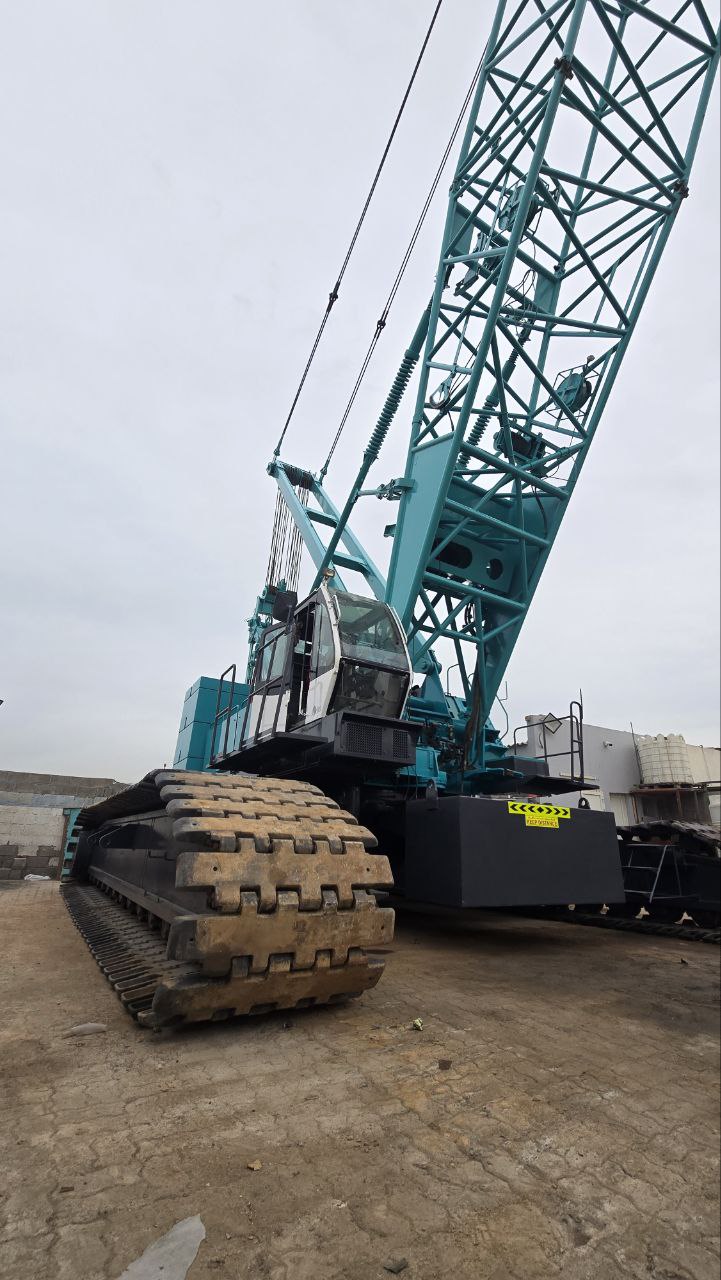

Kobelco CKE2500
Login to view detailed pricing and rental terms
Description
Kobelco's 250-tonne lattice boom crawler, available for bare rental or fully operated hire across the UAE. Built for heavy infrastructure lifts, bridge erection and plant construction, with main boom, fixed jib and luffing jib configurations.
Rental Includes:
- • Equipment inspection reports
- • Mob/Demob service
- • 24/7 technical support
- • Comprehensive insurance coverage
- • Certified operator
- 250 tMax capacity @ 4.0 m
- 91.4 mMain boom (300 ft)
- 112.8 mMax boom + luffing jib
- 95 kPaGround pressure
Working ranges
Capacity at working radius
The 250 t rating applies only close in. Pick a configuration to see what the CKE2500 lifts where your load actually sits.
| Boom length | Radius | Capacity | Note |
|---|---|---|---|
| 15.2 m (50 ft) | 4.0 m | 250.0 t | Max rated capacity |
| 30.5 m (100 ft) | 10.0 m | 100.2 t | Heavy close-in lifts |
| 30.5 m (100 ft) | 20.0 m | 44.0 t | |
| 45.7 m (150 ft) | 9.0 m | 103.0 t | Mid-range lifts |
| 45.7 m (150 ft) | 20.0 m | 42.8 t | |
| 45.7 m (150 ft) | 41.2 m | 15.3 t | Max radius at this length |
| 61.0 m (200 ft) | 14.0 m | 57.9 t | |
| 61.0 m (200 ft) | 30.0 m | 23.1 t | Bridge & plant erection |
| 61.0 m (200 ft) | 50.0 m | 9.9 t | |
| 76.2 m (250 ft) | 13.7 m | 53.5 t | Min radius at this length |
| 76.2 m (250 ft) | 30.0 m | 21.3 t | |
| 76.2 m (250 ft) | 40.0 m | 13.4 t | |
| 91.4 m (300 ft) | 16.1 m | 34.9 t | Max on longest boom |
| 91.4 m (300 ft) | 30.0 m | 18.6 t | |
| 91.4 m (300 ft) | 50.0 m | 7.1 t | |
| 91.4 m (300 ft) | 76.0 m | 0.9 t | Max radius |
| Boom + jib | Radius | Capacity | Note |
|---|---|---|---|
| 27.4 m + 12.2 m | 9.8 m | 26.8 t | Max fixed jib capacity |
| 27.4 m + 12.2 m | 30.0 m | 16.7 t | |
| 51.8 m + 12.2 m | 13.6 m | 26.8 t | |
| 51.8 m + 12.2 m | 30.0 m | 20.9 t | Typical plant work |
| 51.8 m + 30.5 m | 19.8 m | 6.9 t | |
| 51.8 m + 30.5 m | 50.0 m | 4.1 t | |
| 76.2 m + 12.2 m | 17.4 m | 26.8 t | |
| 76.2 m + 30.5 m | 23.6 m | 6.8 t | Max combination (250 + 100 ft) |
| 76.2 m + 30.5 m | 50.0 m | 4.8 t | |
| 76.2 m + 30.5 m | 96.8 m | 1.2 t | Max radius |
| Boom + luffing jib | Radius | Capacity | Note |
|---|---|---|---|
| Luffing jib | 9.8 m | 70 t | Max luffing jib capacity |
| 51.8 m + 61.0 m | 112.8 m total | On request | Max reach (170 + 200 ft) |
| 61.0 m + 51.8 m | 112.8 m total | On request | Alternate max combination |
| Luffing angle | 63° – 88° | — | Close-in work over obstructions |
Technical data
Kobelco CKE2500 specifications
Boom & jib configurations
- Max capacity, main boom250 t @ 4.0 m
- Max main boom length91.4 m (300 ft)
- Fixed jib max capacity26.8 t @ 9.8 m
- Max fixed jib combination76.2 m + 30.5 m
- Luffing jib max capacity70 t @ 9.8 m
- Max luffing jib combinations51.8 + 61.0 m / 61.0 + 51.8 m
- Luffing angle63° – 88°
Winch performance
- Rated line pull (single line)132 kN (13.5 tf)
- Max line pull245 kN (25 tf)
- Max line speed (1st layer)110 m/min
- Wire rope diameter25 mm
- Rope length, main / aux480 m / 385 m
- Brake typeWet multiple disc
- Free-fallOptional
Power, hydraulics & speeds
- EngineMitsubishi 6D24-TLU2D
- Engine output235 kW @ 2,000 rpm
- Fuel tank400 L
- Main pumps4 × variable displacement
- Max hydraulic pressure30.9 MPa
- Swing speed2.1 rpm
- Travel speed1.1 / 0.7 km/h
Mobilization
Transport, assembly & ground bearing
The data your logistics team and site engineers need to plan permits, truck loads and crane pads before the crane arrives.
Transport
- Base machine transport weight44.9 t
- Base machine L × W × H13.64 × 3.50 × 3.40 m
- On low loader, L × H13.70 × 4.20 m
- Crawlers (each)23.5 t · 8.83 × 1.22 × 1.37 m
- Truck loads (61 m boom + 51.8 m luffing jib)1 low loader + 6 or more trucks
- Permits & escortsCoordinated by us
Counterweight & assembly
- Upper counterweight80.6 t
- Counterweight base + slabs12.89 t + 5.63 t slabs
- Carbody (lower) counterweight20.0 t
- Total counterweight100.6 t
- Tail swing radiusapprox. 6.0 m
- Self-erection deviceStandard
The crane installs its own crawlers and counterweight using its hydraulic gantry, so a helper crane is usually needed only for long boom or jib assembly.
Ground bearing pressure
- Operating weightapprox. 208 t
- Average ground pressure95 kPa (0.97 kgf/cm²)
- Undercarriage, L × W8.83 m × 7.22 m
- Track shoe width1.22 m
- GBP under your liftCalculated per plan
Peak track pressure under load is higher than the average. We supply GBP calculations and mat/pad requirements with every lift plan.
Transportation plan
Main boom 61.0 m + luffing jib 51.8 m
| Load | Vehicle | Contents | Weight |
|---|---|---|---|
| No. 1 | Low loader | Base machine incl. 3rd winch, translifter, all wire ropes | 44.90 t |
| No. 2 & 3 | Tent side truck | Crawler (one per truck) | 23.50 t each |
| No. 4 & 5 | Flat bed trailer | 4 counterweight slabs, 40 ft main boom, 40 ft luffing jib | 25.72 t each |
| No. 6 | Flat bed trailer | Counterweight base, 40 ft main boom, 2 × 20 ft luffing jib, 2 carbody weight bases | 24.97 t |
| No. 7 + | Tent side truck | 10 ft main boom inserts, remaining boom, jib and rigging | from 1.48 t |
Component weights
- Travel kit assembly6,000 kg
- Boom base3,250 kg
- Boom top (with guy cables)3,138 kg
- Insert 3.0 / 6.1 / 12.2 m776 / 1,292 / 2,243 kg
- Mast2,970 kg
- Gantry2,920 kg
- Luffing jib base / top1,140 / 1,170 kg
- Luffing main boom top1,890 kg
Safety & compliance
Ready for strict job sites
Every unit is inspected and documented before mobilization, so your HSE team can approve it without delay.
Load moment indicator / RCL
Live load, radius and percentage of rated capacity in cab
Over-hoist prevention
Automatic stop with anti-two-block protection
Free-fall lockout & drum indicators
Where free-fall winches are fitted
Wind speed indicator
Boom-tip anemometer for wind limits
Function lock lever
Prevents accidental crane movement when the operator leaves the controls
Third-party inspection
Valid TPI certificate and load test report supplied before mobilization
Rental terms
Bare rental or operated crane hire
Bare rental
Monthly rates on request
For contractors with their own certified operators and lifting supervisor.
- Inspected crane with TPI certificate
- Configuration of your choice (boom / jib)
- Scheduled maintenance and breakdown support
- Weekly and monthly contracts
Operated hire
Most requested
Daily, weekly & monthly rates on request
Crane, crew and planning in one contract, for project lifts and shutdowns.
- Licensed operator, riggers and banksman
- Site survey, lift plan and GBP calculation
- Mobilization, assembly and demobilization
- 24/7 maintenance and emergency response
