KA2200
Description

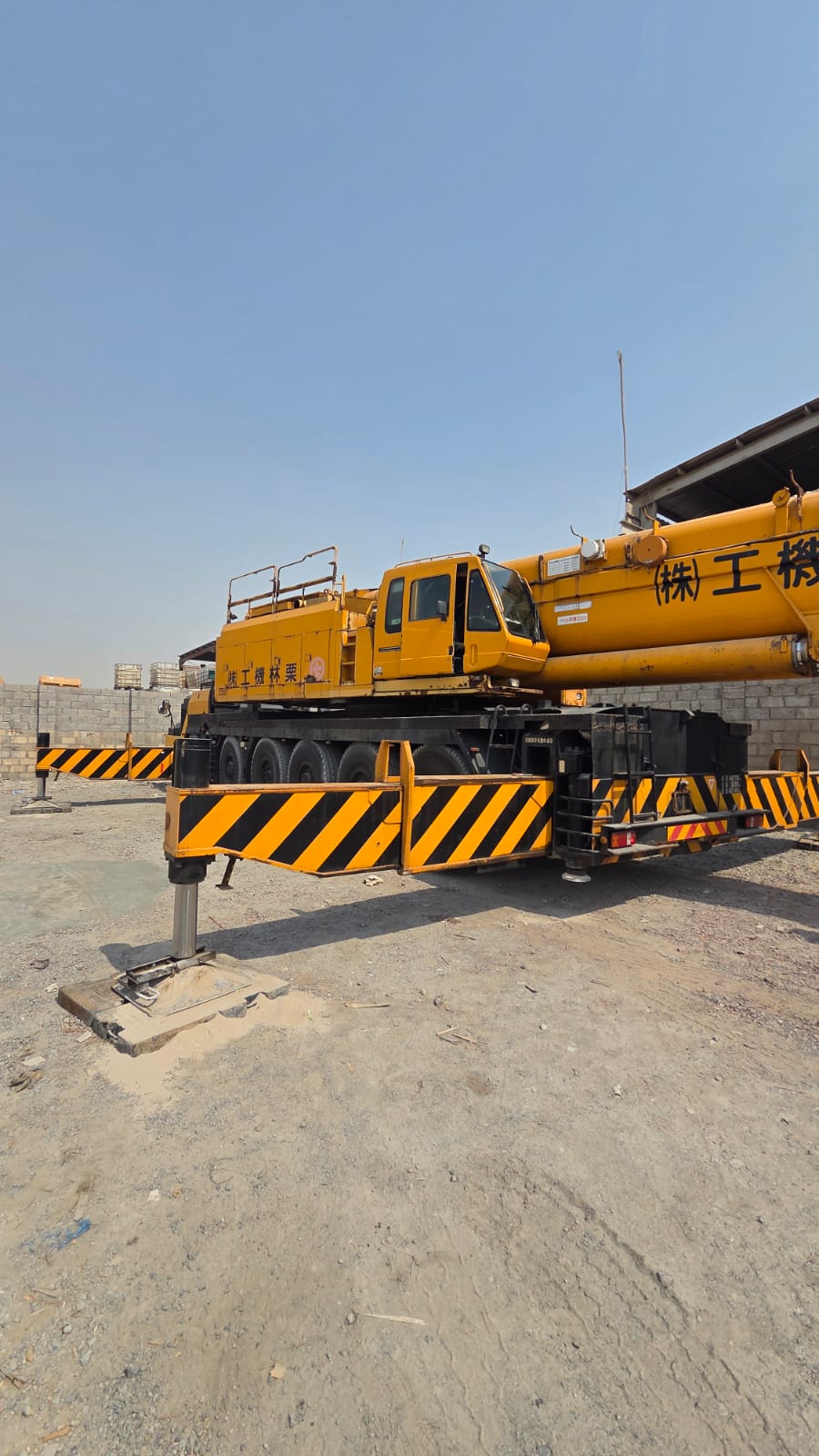

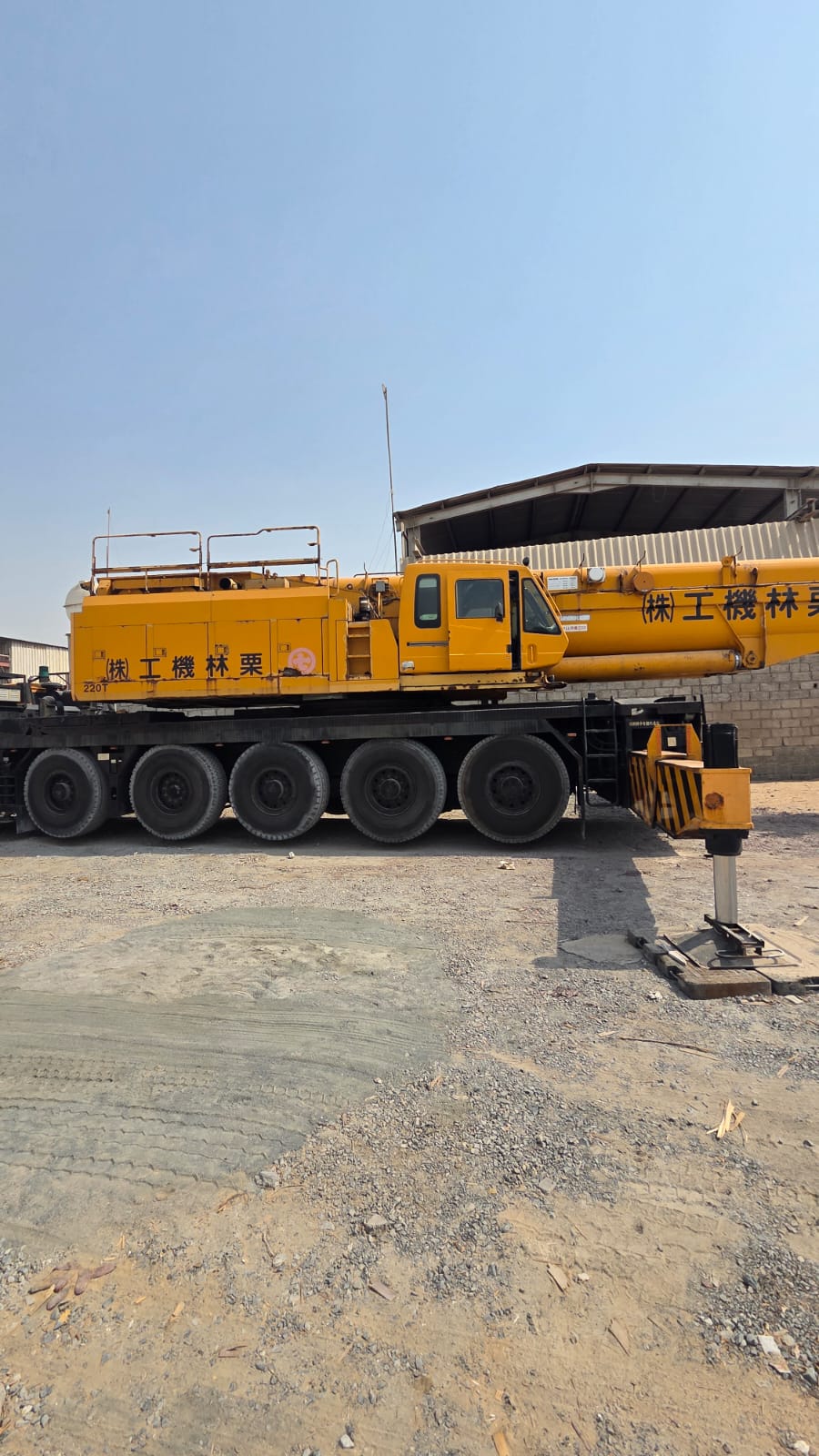

The KATO KA-2200 is a 220-ton class all-terrain crane engineered for heavy lifting, high-lift precision and field mobility. It combines powerful lifting capability with advanced control systems and robust structural integrity, and is widely recognized for its dual-engine design and versatile luffing jib arrangements.
Rental Includes:
- • Equipment inspection reports
- • Mob/Demob service
- • 24/7 technical support
- • Comprehensive insurance coverage
- • Certified operator
Ideal for
- Heavy industrial installations
- Steel structure erection
- Power plant and refinery projects
- Large-scale construction sites
- Infrastructure and bridge works
- 220 tMax capacity @ 3.0 m
- 50 m5-section telescopic boom
- 106.9 mMax boom + jib system length
- 10° – 60°Jib offset angles
- 2 enginesSeparate carrier & upper power
Working ranges
Boom & jib configurations
From fast telescopic work to long-reach luffing and heavy-lift jib setups. Pick a configuration.
| Main boom | Value | Note |
|---|---|---|
| Boom type | 5-section | Fully hydraulic telescopic |
| Boom length | 14.4 – 50.0 m | Retracted to fully extended |
| Max capacity | 220 t @ 3.0 m | With heavy-load hoisting equipment and 220 t hook |
| Super-Luffing (SL) jib | Value | Note |
|---|---|---|
| SL jib length | 10.5 – 27.3 m | 34–90 ft |
| Jib offset | 10° – 60° | Variable, for reach over obstructions |
| Heavy-Lift (HL) jib | Value | Note |
|---|---|---|
| HL jib length | up to 54.0 m | |
| Max system length | 106.9 m | Boom + jib combined (350 ft) |
| Jib offset | 10° – 60° |
| Hook block | Typical use |
|---|---|
| 220 t | Max capacity lifts, close in |
| 120 t | Heavy lifts at mid radius |
| 83 t | General heavy lifting |
| 24 t | Long boom and jib work |
| 12 t | Single-line, fast hoisting |
Technical data
KA2200 specifications
Lifting & reach
- Max lifting capacity220 t @ 3.0 m
- Main boom14.4 – 50.0 m, 5 sections
- Super-Luffing jib10.5 – 27.3 m
- Heavy-Lift jibup to 54.0 m
- Max system length106.9 m
- Jib offset10° – 60°
Power & travel
- Engine layoutDual engine
- Carrier engineMercedes-Benz diesel
- Upper engineSeparate diesel for crane hydraulics
- Max travel speed75 – 85 km/h
- Gross vehicle weightapprox. 156.1 t
Control & hooks
- Control systemKATO ACS computer
- Load moment monitoringStandard
- Anti-two-blockStandard
- Hook blocks220 / 120 / 83 / 24 / 12 t
Why the KA2200
Heavy capacity, road mobility
Dual-engine design
A dedicated upper engine runs the crane, so the carrier engine isn't worked during lifting, saving fuel and wear
Long reach
Super-Luffing and Heavy-Lift jibs extend the 50 m boom to a 106.9 m system
Drives to site
All-terrain carrier travels at up to 75–85 km/h, depending on configuration and axle limits
ACS safety computer
Monitors load moment and prevents two-blocking throughout the lift
